Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: WANGLU
  • Model Number: IPC-8600ADHS
  • Function1: Support ONVFI IP camera
  • Function2: With Digital l Multimeter( customize function)
  • Function 3: HD SDI ((customize function)
  • Function 4: Support Analog camera and PTZ control
  • Function5: PTZ control,Cable scan, IP address search
  • Function 6: Optical power mete (customize function)
  • Function 7: PoE 24V power output
  • Function8: DC12V/2A
  • Function9: TVI CVI AHD 1080P camera test
  • Function10: Visual fault locator customize function)
  • Type: Hand Tools
  • Package: Box
  • Application: cctv tools

Packaging & Delivery

Packaging Details Standar color packing box
Delivery Time Shipped in 5 days after payment

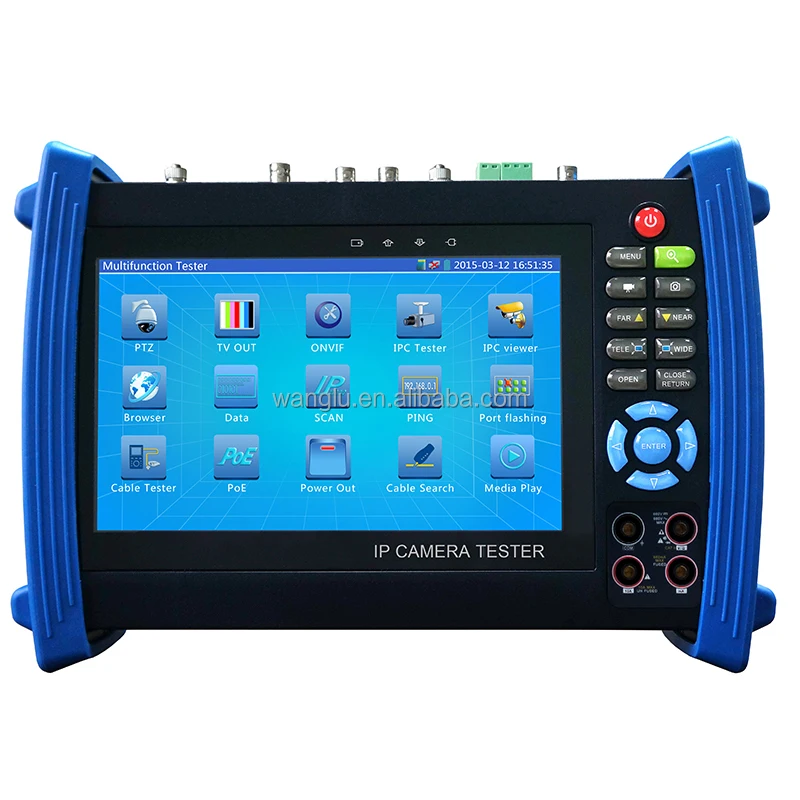

7 inch  touch screen IP TVI CVI AHD SDI Analog camera test  monitor

Support ONVFI IP camera/1080P camera /Support Analog camera


NOTE: This item is basic model! There are fiveoptional functions which can be added to:

IPC-8600M----Add Digital multimeter:


IPC-8600O----Add Optial fiber power meter:


IPC-8600V----Add Visual fault locator:


IPC-8600T----Add TDR function:


IPC-8600S----Add SDI camera function



Please contact us if you need any one of these functions or all functions. And the price is different!



 New Multifunction 7 inch IP camera  tester  with HD SDI test 7 inch 800*600d display screen,Touch Screen Support 1080P
  1. 7 inch touch screen,800*600 resolution NEW
  2. Capacitive touch screen ,OSD menu,
  3. Touch screen and key operation
  4. Built-in WIFI, wireless network camera test NEW
  5. Support 1080P camera
  6. SDI camera test (*Optional)

         SDI digital video surveillance testing, support resolution as follows:

         1280x720P 25Hz/1280x720P 30Hz/1280x720P 50Hz/1280x720P 60Hz/1920x1080P 25Hz/

         1920x1080P 30Hz/1920x1080I   50Hz/1920x1080I 60Hz

  1. digital camera image test and video image zoom, record, screen snapshot, Photo viewer and playback
  2. Currently, Support ONVIF, combine with more than 30 brand camera ,such as DAHUA,Haikang,KEDA,Samsung,HIKVISION and TIANDY camera.
  3. If IP camera manufacturers can offer Video Management Software that compatible with mobile phone or tablet PC, install the Video Management Software in the tester enable the tester to display IP camera image by IP camera viewer.
  4. OSD menu rotates in 180 angle NEW
  5. Display real resolution of the IP camera images
  6. Video screen snapshot ,video recording ,files named and save, easy to find
  7. Support network PTZ controller (ONVIF)
  8. Support 1080P HD video files and MKV/MP4 media files play
  9. PTZ controller ,Photograph, Video record, Record playback
  10. Video level meter, Video PEAK lever, SYNC level, COLOR BURST measurement NEW
  11. Optical Power Meter, it can measure the optical power value and fiber loss *(Optional)
  12. Visual fault locator , to test fiber’s bending and breakage * (Optional)
  13. TDR cable test, test cable length and short-circuit * (Optional)
  14. Digital Multi-meter, Voltage, current, resistance and capacitance measuring, continuity testing, diode testing. (Optional)
  15. Color bar generator, analog video color bar and testing image output NEW
  16. POE voltage measurement, PING test ,IP address scan, port flashing etc
  17. PoE DC48V power output,Max power 24W NEW
  18. 12V /2A power output NEW
  19. 5V 2A power output,as the power bank NEW
  20. HDMI output, 1920*1080P Resolution NEW
  21. Audio in /out
  22. LED lamp, calculators, music players and other application tools
  23. Support customers self update software
  24. Lithium Ion Polymer Battery, working time lasts 16 hours


IPC-8600[T]optional models


7 inch touch Capacitive touch screen,1024*600 resolution

Communication port

10/100M adjustable,RJ45

IP camera


Video in/out

1 channel BNC Input & 1 channel Output,support PAL/NTSC format

Video level meter*

Video PEAK lever,SYNC level, COLOR BURST measurement

DC12V power output

Output temporary 12V power for camera, the current is near 1A.

Audio input

test the pickup and other audio equipments on the front-end

PTZ Protocol

Support morethan 30 protocols ,such as



Support RS232/RS485

Color bar generator

Output one channel PAL/NTSC color bar video signal for testing monitor or video cable

UTP Cable tester

Test UTP cable connection status and display in the screen. Read the number of the test box

Data Monitor

Captures and analyzes the command data from controlling device

Photograph, Video record, Record playback

Snapshot, Video record, views the storage file in the SD card.

Network testing

IP address scan, Linkmonitor, PING test. Scan the ID of the PTZ camera quickly


Cable scan

Search the cable by the audio signal

POE tester

Display the power supply voltage and cable connection states

Digital Multimeter

Voltage, current, resistance and capacitance measuring, continuity testing, diode test

Optical power meter


Measure range(dBm):-70~+10dBm

Visual fault locator

Test fiber’s bending and breakage ( SM and MM fiber)

TDR Tester

breakpoint and short circuit measurement(BNC cable, telephone cable)


Power Adapter

DC 5V(2.5-3.0A)


Built-in 3.7V Lithium polymer battery, 12000mAh


After charging 8-10 hours, working time lasts 16 hours


Operation setting

Capacitive touch screen. English/Chinese OSD menu

Auto off

1-30 (mins)

Key tone



Working Temperature


Working Humidity



231mm x 172mm x 52mm / 1.26Kg
